Micsig SigOFIT Ponta OP50-5 (50X/500 MHz)
799 €
982,77 € Incluindo IVA

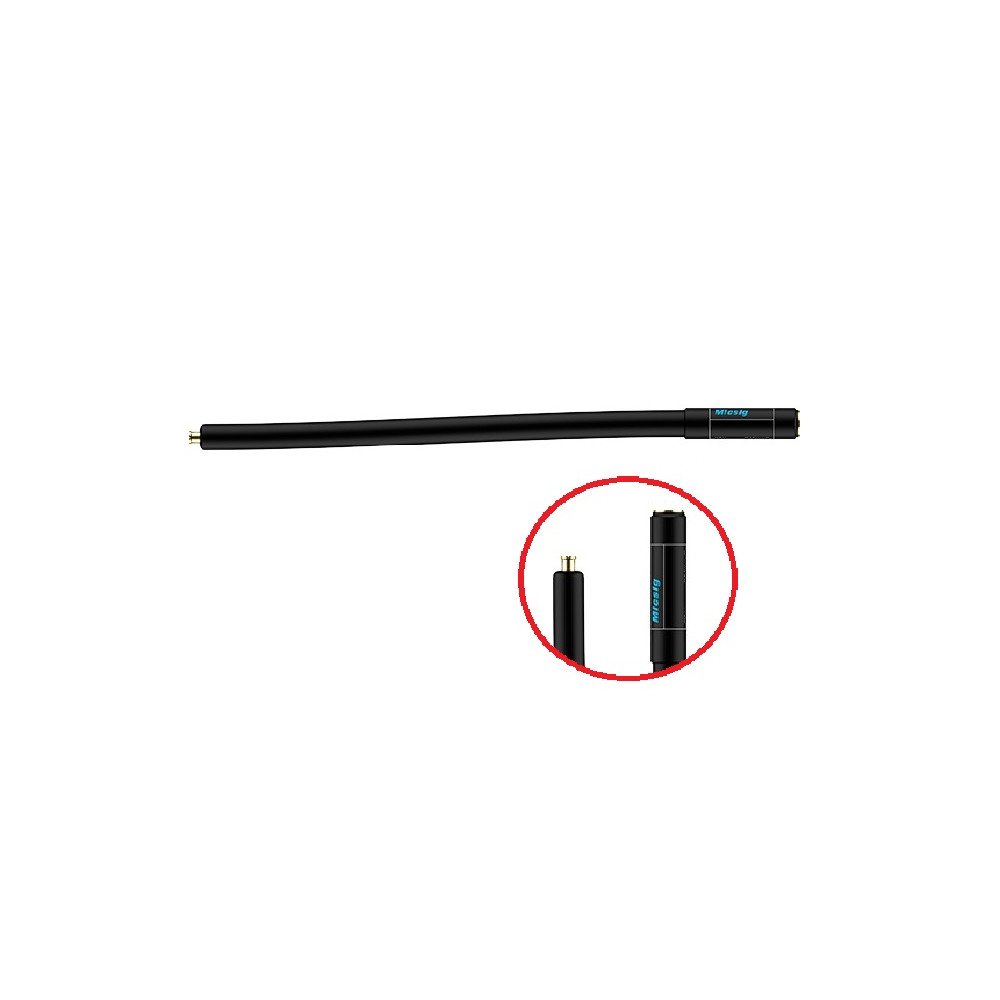

Ponta atenuadora 50X / 500 MHz para sondas de fibra ótica Micsig SIGOFIT.
Ponta de sonda de atenuação de 50X, largura de banda de 500 MHz e faixa de tensão de ±25V para sondas de fibra óptica Micsig SIGOFIT.
Cuidado: Selecione o atenuador certo para medição para evitar danos ao conversor eletroóptico ou uma degradação do desempenho devido à sobretensão. Selecione a ponta atenuadora com a relação de atenuação mais baixa permitida pelo intervalo do sinal testado.
O atenuador deve ser selecionado de acordo com a tensão de pico (ou tensão rms) do sinal sob teste. Consulte as especificações técnicas para selecionar o atenuador certo.
|
SigOFIT model |
Attening Tip model |
Adapter type |
Attenuation ratio |
Voltage range |
Non- destructive voltage (Max.) |
Input impedance |
|
MOIP100P & MOIP200P |
OP10-2 |
MMCX |
10:1 @0dB |
±12.5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±1.25V |
|||||
|
OP20-2 |
MMCX |
20:1 @0dB |
±25V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±2.5V |
|||||
|
OP50-2 |
MMCX |
50:1 @0dB |
±62.5V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±6.25V |
|||||
|
OP100-2 |
MMCX |
100:1 @0dB |
±125V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±12.5V |
|||||
|
OP200-2 |
MCX |
200:1 @0dB |
±250V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±25V |
|||||
|
OP500-2 |
MCX |
500:1 @0dB |
±625V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±62.5V |
|||||
|
OP1000-2 |
MCX |
1000:1 @0dB |
±1250V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±125V |
|||||
|
OP2000-2 |
MCX |
2000:1 @0dB |
±2500V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±250V |
|||||
|
OP5000-2 |
LCX |
5000:1 @0dB |
±6250V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
500:1 @20dB |
±625V |
|||||
|
MOIP350P |
OP10-3 |
MMCX |
10:1 @0dB |
±12.5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±1.25V |
|||||
|
OP20-3 |
MMCX |
20:1 @0dB |
±25V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±2.5V |
|||||
|
OP50-3 |
MMCX |
50:1 @0dB |
±62.5V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±6.25V |
|||||
|
OP100-3 |
MMCX |
100:1 @0dB |
±125V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±12.5V |
|||||
|
OP200-3 |
MCX |
200:1 @0dB |
±250V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±25V |
|||||
|
OP500-3 |
MCX |
500:1 @0dB |
±625V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±62.5V |
|||||
|
OP1000-3 |
MCX |
1000:1 @0dB |
±1250V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±125V |
|||||
|
OP2000-3 |
MCX |
2000:1 @0dB |
±2500V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±250V |
|||||
|
OP5000-3 |
LCX |
5000:1 @0dB |
±6250V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
500:1 @20dB |
±625V |
|||||
|
MOIP500P |
OP10-5 |
MMCX |
10:1 @0dB |
±5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±0.5V |
|||||
|
OP20-5 |
MMCX |
20:1 @0dB |
±10V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±1V |
|
MOIP500P |
OP50-5 |
MMCX |
50:1 @0dB |
±25V |
1000Vpp |
4.19MΩ || 2pF |
|
5:1 @20dB |
±2.5V |
|||||
|
OP100-5 |
MMCX |
100:1 @0dB |
±50V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±5V |
|||||
|
OP200-5 |
MCX |
200:1 @0dB |
±100V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±10V |
|||||
|
OP500-5 |
MCX |
500:1 @0dB |
±250V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±25V |
|||||
|
OP1000-5 |
MCX |
1000:1 @0dB |
±500V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±50V |
|||||
|
OP2000-5 |
MCX |
2000:1 @0dB |
±1000V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±100V |
|||||
|
OP5000-5 |
MCX |
5000:1 @0dB |
±2500V |
3600Vpp |
40.92MΩ || 1pF |
|
|
500:1 @20dB |
±250V |
|||||
|
OP10000-5 |
LCX |
10000:1 @0dB |
±5000V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
1000:1 @20dB |
±500V |
|||||
|
MOIP800P & MOIP1000P |
OP10-1G |
MMCX |
10:1 @0dB |
±5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±0.5V |
|||||
|
OP20-1G |
MMCX |
20:1 @0dB |
±10V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±1V |
|||||
|
OP50-1G |
MMCX |
50:1 @0dB |
±25V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±2.5V |
|||||
|
OP100-1G |
MMCX |
100:1 @0dB |
±50V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±5V |
|||||
|
OP200-1G |
MCX |
200:1 @0dB |
±100V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±10V |
|||||
|
OP500-1G |
MCX |
500:1 @0dB |
±250V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±25V |
|||||
|
OP1000-1G |
MCX |
1000:1 @0dB |
±500V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±50V |
|||||
|
OP2000-1G |
MCX |
2000:1 @0dB |
±1000V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±100V |
|||||
|
OP5000-1G |
MCX |
5000:1 @0dB |
±2500V |
3600Vpp |
40.92MΩ || 1pF |
|
|
500:1 @20dB |
±250V |
|||||
|
OP10000-1G |
LCX |
10000:1 @0dB |
±5000V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
1000:1 @20dB |
±500V |
Adapters and coaxial lead
|
Accessory name |
Withstand voltage range |
|
MMCX-adapter |
＜300 Vpp |
|
MCX-adapter |
＜3000 Vpp |
|
MMCX coaxial lead |
＜300 Vpp |
|
MCX coaxial lead |
＜3000 Vpp |
|
LCX coaxial lead |
＜8000 Vpp |
